产品中心Products

SDL 高温喷射溢流染色机SDL High Temperature Overflow Jet Dyeing Machine

布速高达 600-700 m/min · 特殊导布防塞Fabric speed up to 600-700 m/min · special selvedge guider prevents stoppage

• 大容量与强适应：轻薄至厚重布种均可顺畅运转，适应范围广泛。Large capacity: light and heavy fabrics run smoothly with low tension.
• 合理低浴比：在保障织物舒展状态下，适当容量浴比可达 1:7。Low liquor ratio: up to 1:7 while keeping the fabric relaxed.
• 大流量主泵系统：高扬程强力主泵配合大流量喷嘴，染液快速渗透。High-head pump with high-flow nozzles ensures rapid dye penetration.
• 专利机尾导布机构：布匹整齐无打结，极大减少停机。Patented rear selvedge guider aligns fabric neatly and prevents stoppage.

SDF 双溢流高温高速染色机SDF Dual Flow High Temperature Rapid Dyeing Machine

多项国家专利 · 码重 50~600 g/m² 全适应Multiple patents · fabric weight 50-600 g/m² fully covered

• 专利多能设计：从常规针织布到高弹力面料（全棉、粘胶、涤纶、锦纶弹力）全适用。Patented design for elastic fabrics (cotton, viscose, polyester, nylon elastic).
• 溢流喷射双选择：支持溢流与喷射自由切换，码重覆盖 50~600 g/m²。Dual flow system: overflow and jet flow selectable, 50-600 g/m².
• 复合变径导布管：降低张力至极限，消除经向折痕与鸡爪印。Variable guide tube eliminates warp creases and eases code-weight control.
• 精工品质：SUS316L 高抗腐蚀 A 级不锈钢，全机精密喷砂。SUS316L heavy-duty vessel with sandblasted surface.

注：L1 为单槽长度，L2 为整机总长。Note: L1 = single chamber length; L2 = overall machine length.

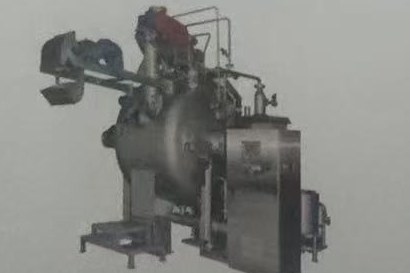

HAD 高温气液染色机系列HAD High Temperature Air-Liquid Dyeing Machine Series

高温气液雾化 · 布速 450-800 m/minHigh-temperature air-liquid atomization · fabric speed 450-800 m/min

• 独立风机气流将染液彻底雾化喷射到织物表面，染料瞬间渗透纤维内部。An independent blower atomizes the liquor and sprays it onto the fabric for instant penetration.
• 浴比突破至 1:3~1:4，极佳地保护敏感高档织物不擦伤。Liquor ratio down to 1:3~1:4 protects delicate premium fabrics from abrasion.

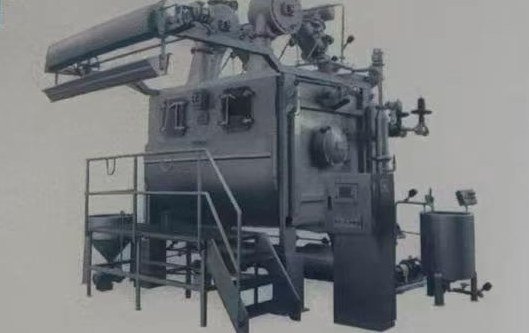

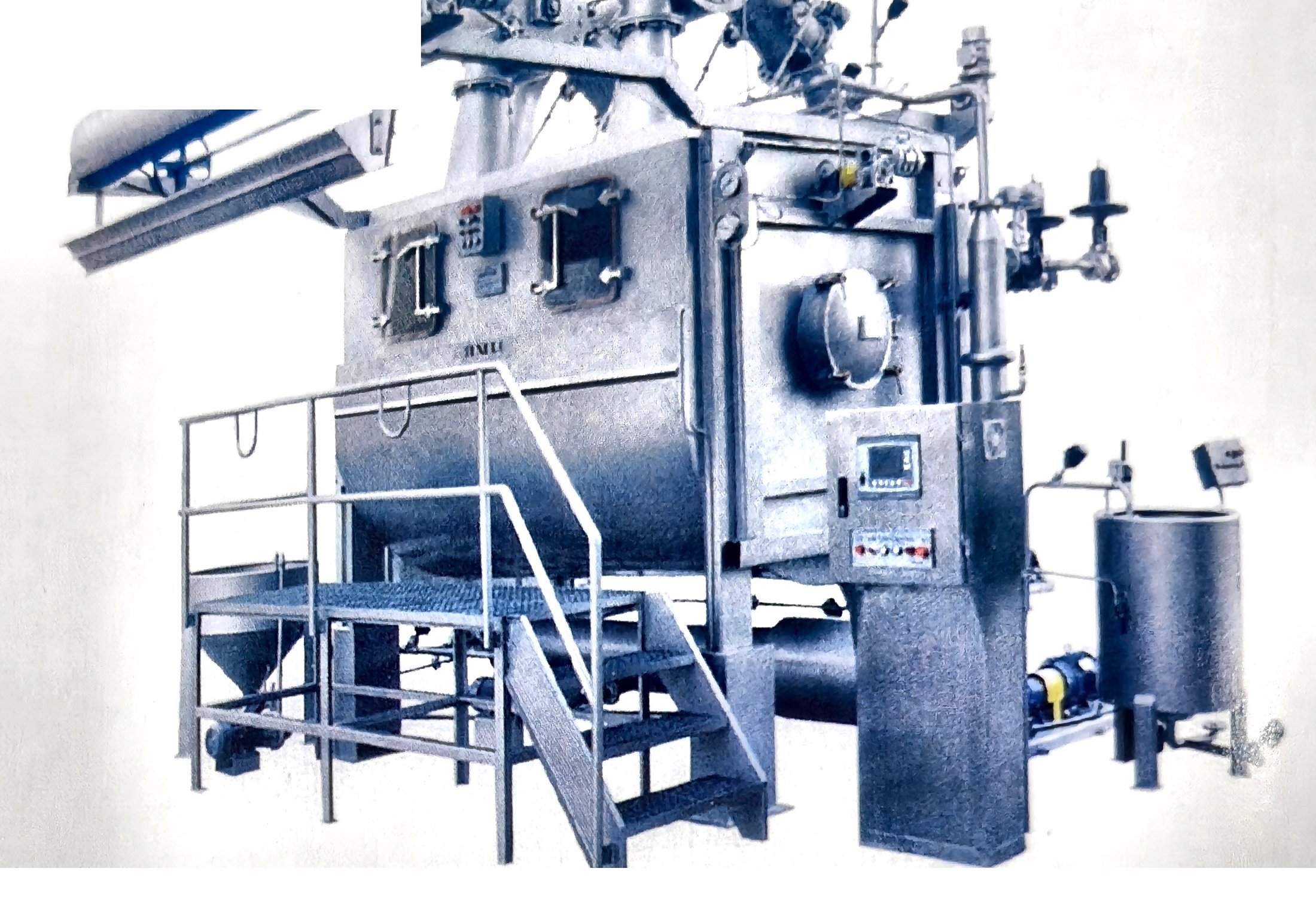

EAD 常温气液染色机系列EAD Normal Temperature Air-Liquid Dyeing Machine Series

气液两相 · 浴比 1:3~1:5Air-liquid two phase · liquor ratio 1:3~1:5

• 风机辅助运布：高速气流托载织物运行，大幅降低织物张力与水体拖拽摩擦。High-speed air carries the fabric, greatly reducing tension and water drag.
• 超低运行浴比：常温状态下实现 1:3~1:5 超低浴比，省水达 50% 以上。Ultra-low liquor ratio 1:3~1:5 at normal temperature saves over 50% water.
• 防起球起毛：避免常规溢流机的布布摩擦，适合天丝、莫代尔及细支棉织物。Prevents pilling — ideal for Tencel, Modal and fine cotton fabrics.
• 适用织物：纯棉、人棉、天丝、莫代尔、竹纤维及棉麻、化纤混纺织物。For cotton, viscose, Tencel, Modal, bamboo fibre and blends.

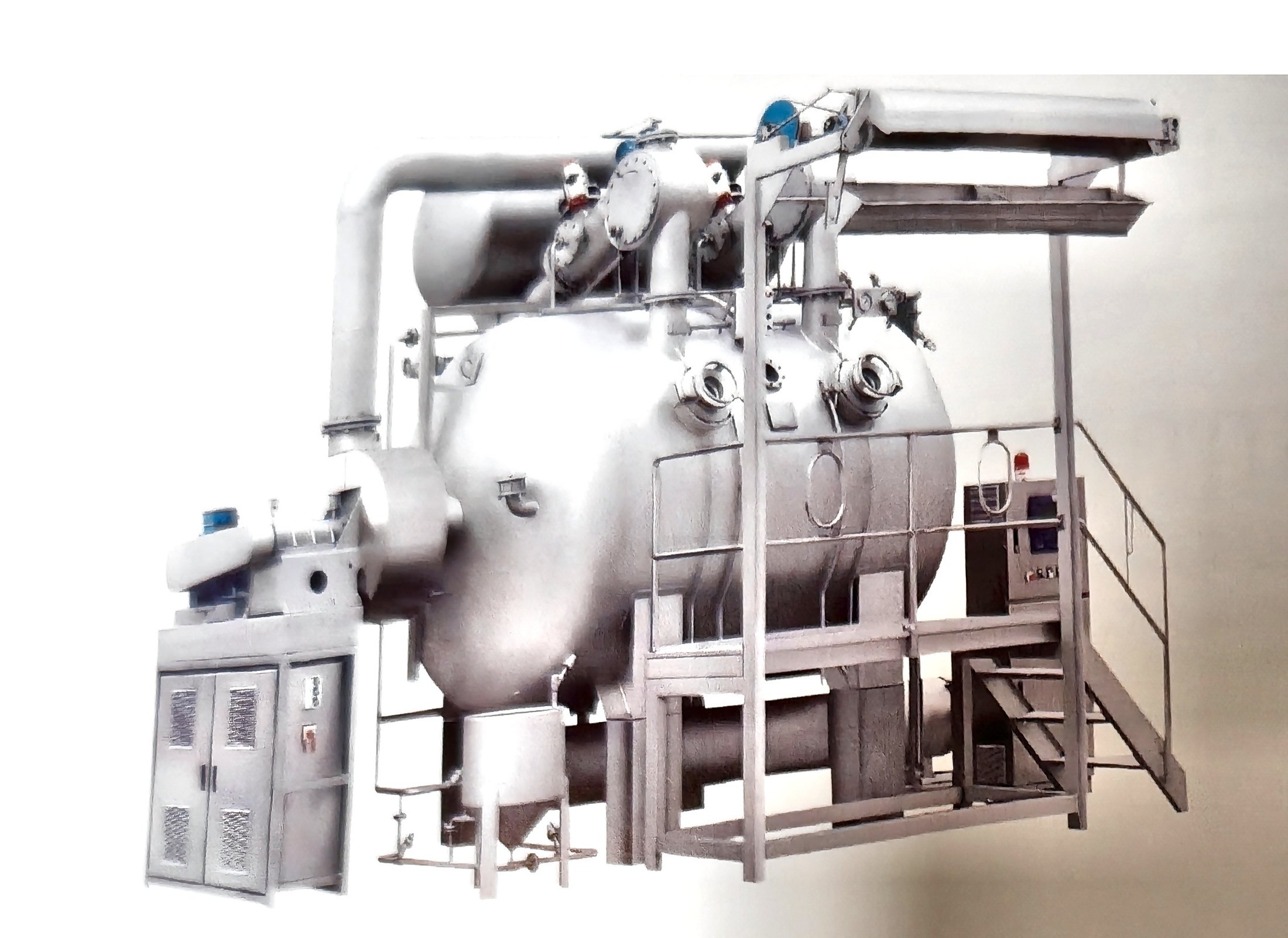

SOQ 系列 高温高压气流染色机SOQ Series HT/HP Airflow Dyeing Machine

极低恒定浴比 1:2~1:4 · 气动运布无水流摩擦Extremely low constant liquor ratio 1:2~1:4 · air-driven fabric without water friction

• 空气动力学原理：鼓风机高速气流与雾化染液在特制喷嘴内剧烈混合，微滴全方位渗透纤维。Aerodynamic principle: high-speed air and atomized liquor mix in the nozzle and penetrate the fibre fully.

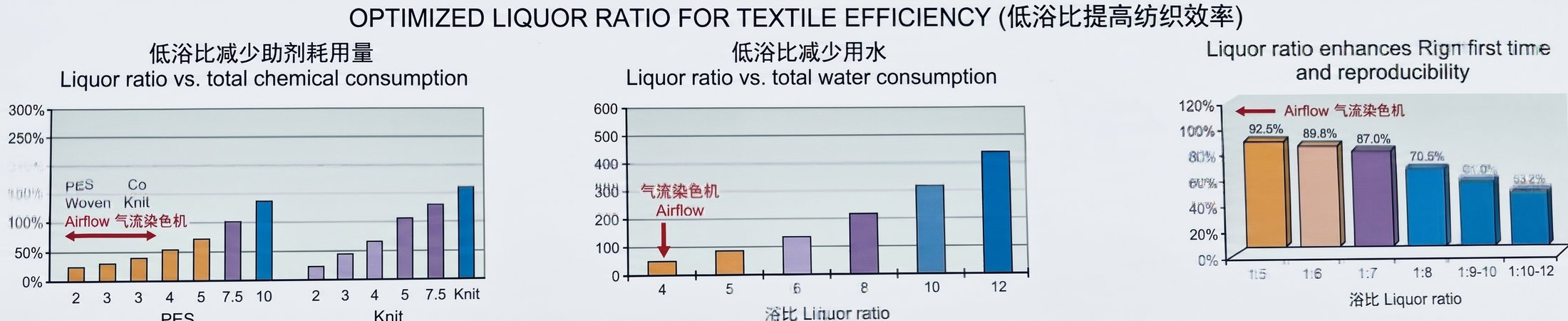

• 极限恒定超低浴比：装布量 50%~100% 范围内浴比保持恒定。Constant ultra-low liquor ratio at 50%-100% fabric load.
• 节水减排超 50%：耗水量相比传统溢流机减少 50% 以上，蒸汽耗用降 45% 以上。Saves over 50% water and 45% steam compared with conventional overflow machines.
• 手感蓬松丰满：织物在无液体阻力下运行，运行张力极低。Full and soft hand feel with extremely low running tension.

SGM38 系列 常温常压溢流染色机SGM38 Series Normal Temperature Dyeing Machine

最新双涡流喷嘴系统 · 低浴比 1:5Latest twin-vortex nozzle system · low liquor ratio 1:5

• 超低常温浴比：在常温机型中达到 1:5 超小浴比。Ultra-low 1:5 liquor ratio for a normal-temperature machine.
• 最新双涡流喷嘴：水流更柔顺，极大降低织物表面毛羽摩擦。Twin-vortex nozzles greatly reduce surface friction on the fabric.
• 防缠布装置：特制走布槽配合大容量储布区，织物不扭曲、不打结。Anti-tangle trough with large storage area prevents twisting and knotting.

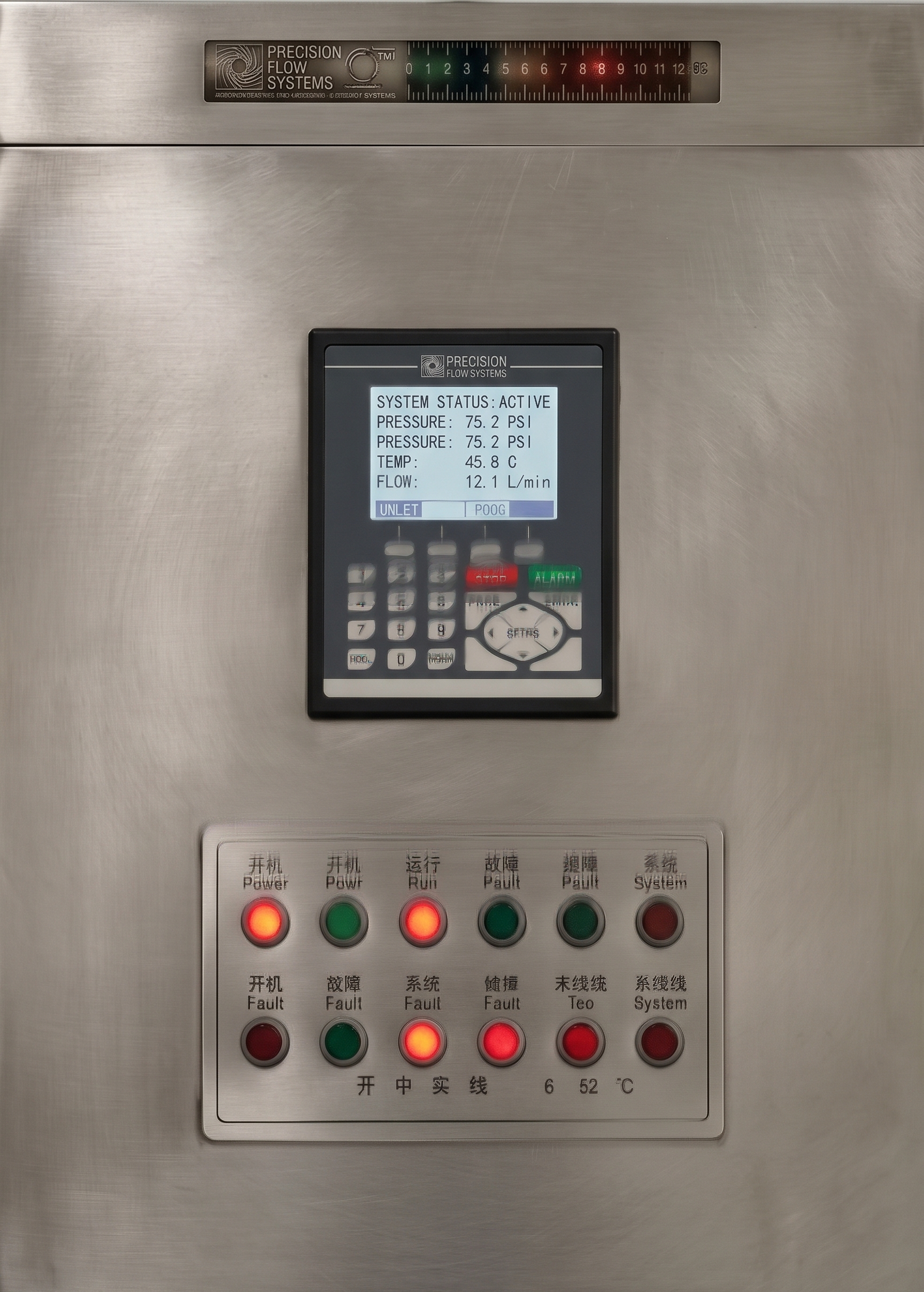

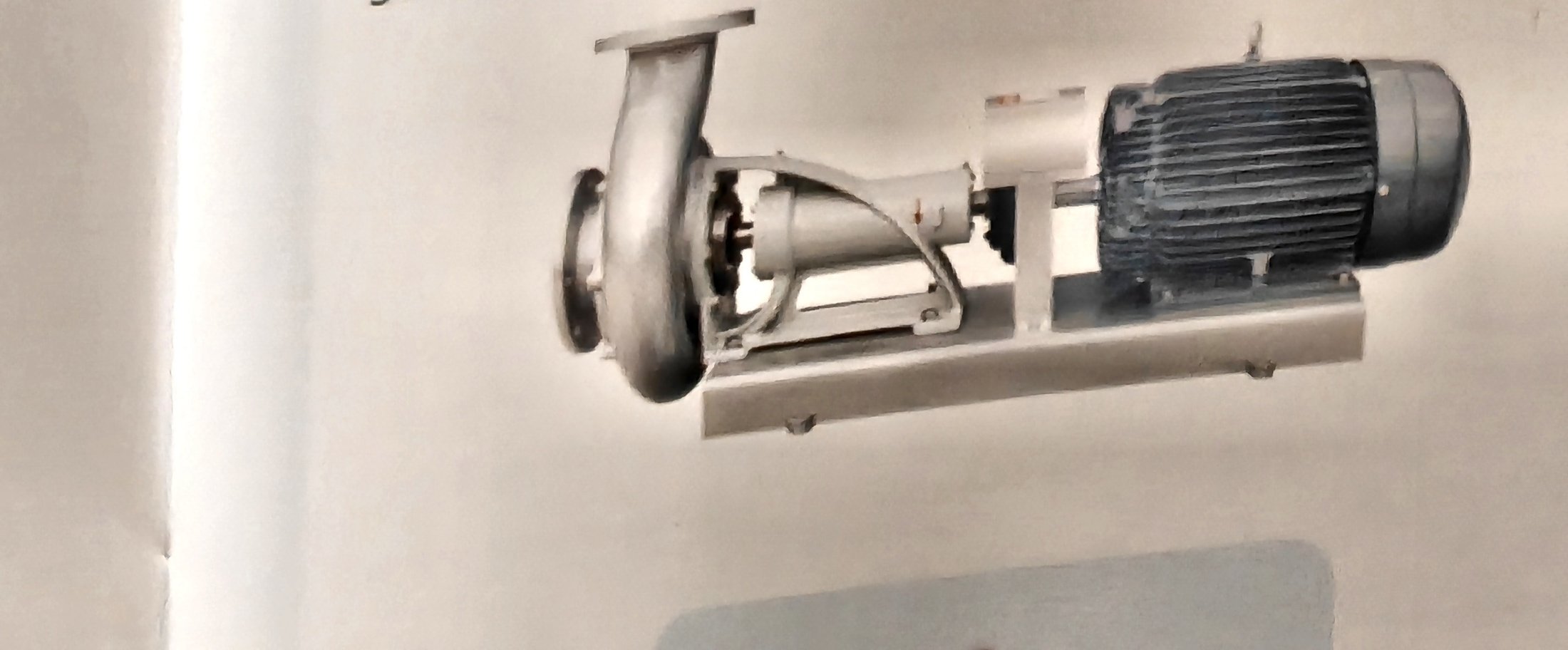

• 高性能循环泵与全自动温控仪表：扬程平稳、能耗低，染色均一无色差。High-efficiency circulation pump and automatic temperature control for level dyeing.

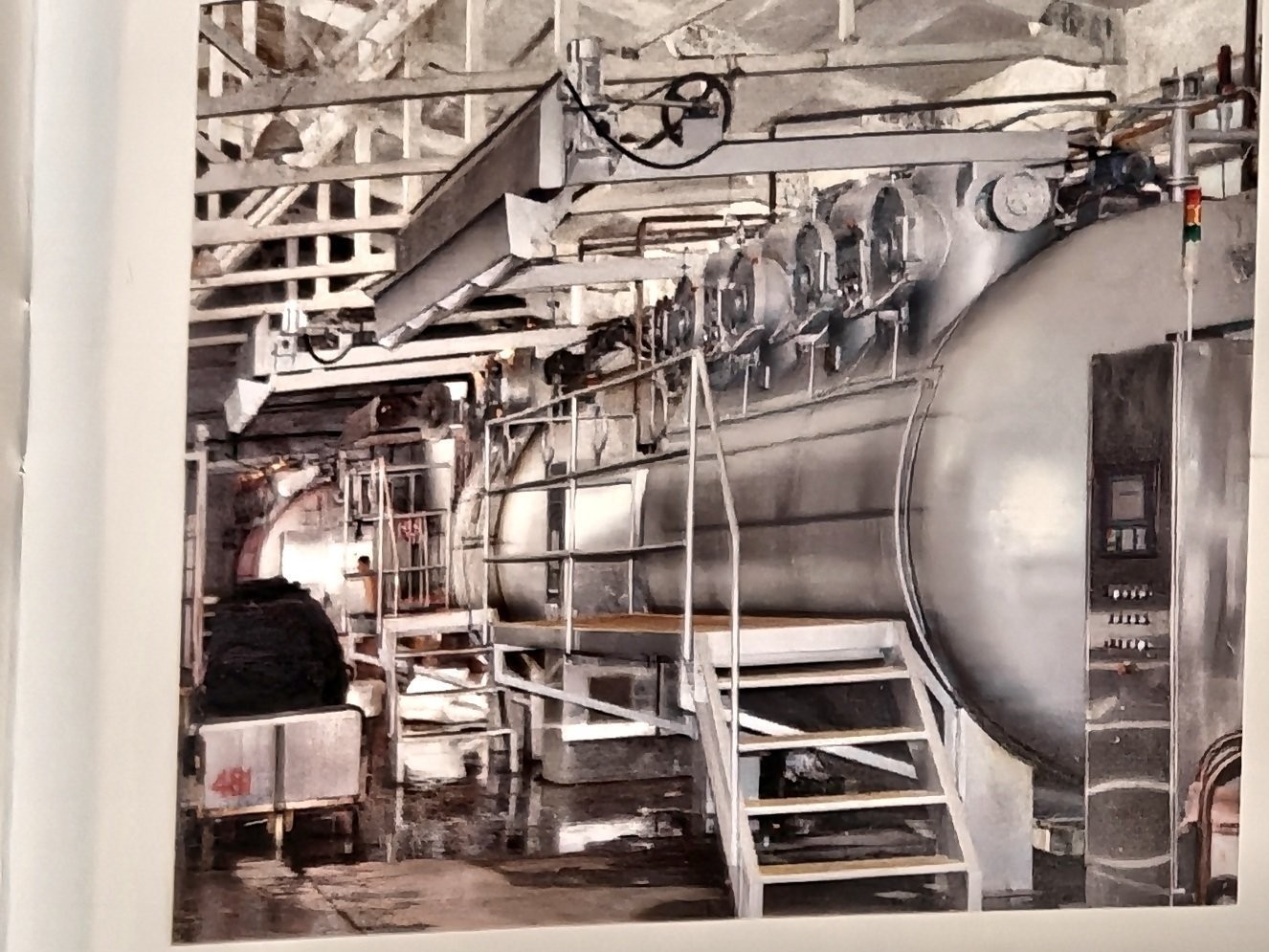

SOH / SUH 系列 环保节能染色机SOH / SUH Series Energy-Saving & Eco-Friendly Dyeing Machine

SOH 高温环保节能 · SUH 常温环保节能 · 布速 450 m/min · 浴比 1:3.5~5SOH high temperature / SUH normal temperature · 450 m/min · liquor ratio 1:3.5~5

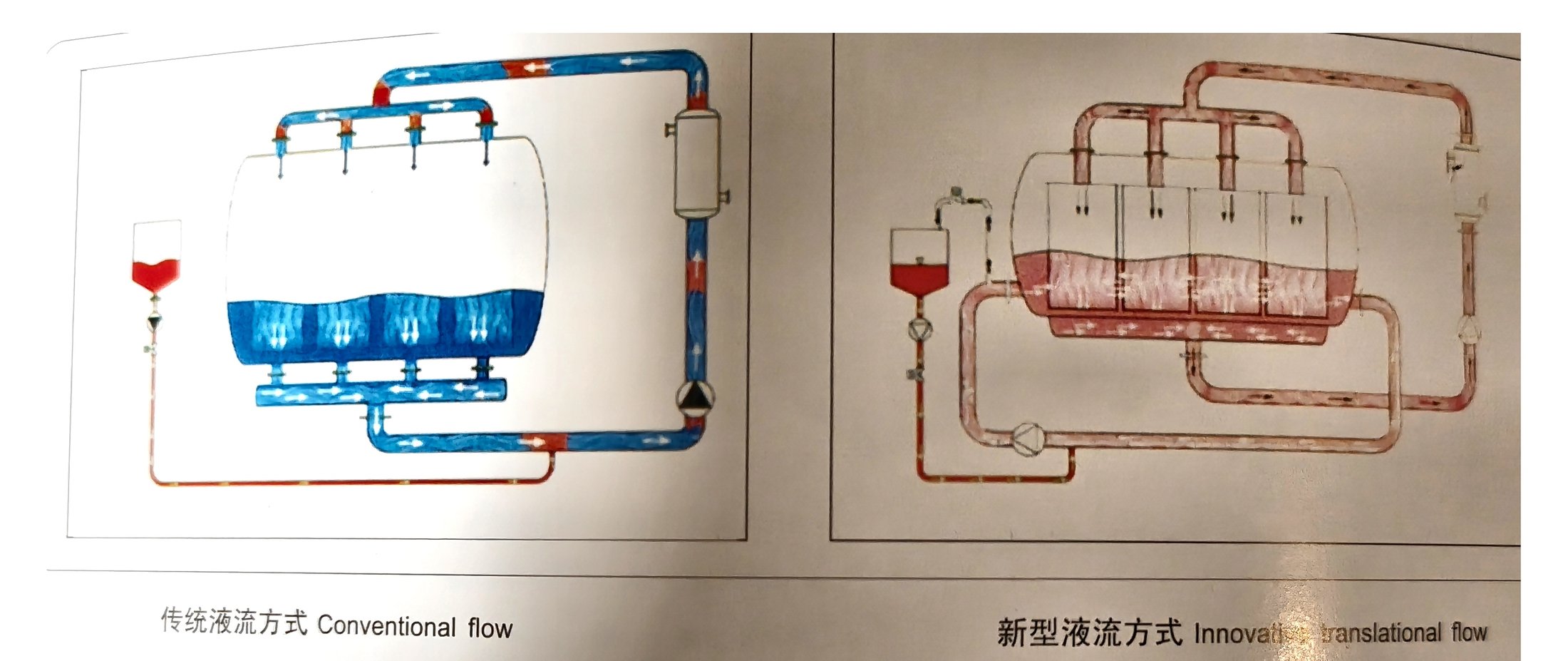

• 染液纵向流动与多向吸液系统大幅提升匀染性，盐斗采用新式填充装置。Longitudinal liquor flow and multi-direction suction improve levelness.
• 立式离心泵降低主泵进水高度，显著减少冷却水耗。Vertical centrifugal pump lowers inlet height and saves cooling water.
• 立式热交换器可即时排出冷凝水，避免水垢形成，延长换热器寿命。Vertical heat exchanger drains condensate instantly and avoids scaling.
• 匀流轧辊与棉屑收集装置节省安装空间，节约染化料并缩短手工剥纱时间。Stripper and lint collector save space, save chemicals and shorten manual stripping time.

浴比 1:3.5~5 · 运行布速最高 450 m/min · 最高工作温度 140℃ · 最高工作压力 0.38 Mpa · 升温 25→100℃ 平均 5℃/min、100→130℃ 平均 2.5℃/min（干饱和蒸汽 0.7Mpa）· 降温 130→100℃ 平均 3℃/min、100→85℃ 平均 2℃/min（冷却水压 0.3Mpa, 25℃）。Liquor ratio 1:3.5~5 · max speed 450 m/min · max temp 140℃ · max pressure 0.38 Mpa · heating 25→100℃ at 5℃/min and 100→130℃ at 2.5℃/min (dry saturated steam 0.7Mpa) · cooling 130→100℃ at 3℃/min and 100→85℃ at 2℃/min (cooling water 0.3Mpa, 25℃).

SS241N 系列 高温高压纱线染色机SS241N Series HTHP Yarn Dyeing Machine

浴比 1:5 · 最高工作温度 140℃ · 最高工作压力 0.45 Mpa · 大容量纱杆起吊Liquor ratio 1:5 · max working temp 140℃ · max working pressure 0.45 Mpa · spindle lifting system

载重栏为「纱杆数量 × 每杆纱筒数量」的折算值：标准纱筒 Φ165×165 mm、1 kg/只，每杆纱筒数随规格为 10~16 只（如 SS241N-225 为 132 杆 × 16 筒 = 2112 kg）。起吊高度范围 4860~8746 mm。原厂样本为竖版翻拍，个别单元格无法辨认处以「—」标注。Capacity equals spindles × packages per spindle: standard package Φ165×165 mm, 1 kg each, 10–16 packages per spindle depending on the model (SS241N-225 = 132 spindles × 16 packages = 2112 kg). Lifting height ranges from 4860 to 8746 mm. Illegible cells in the original portrait catalogue are marked "—".

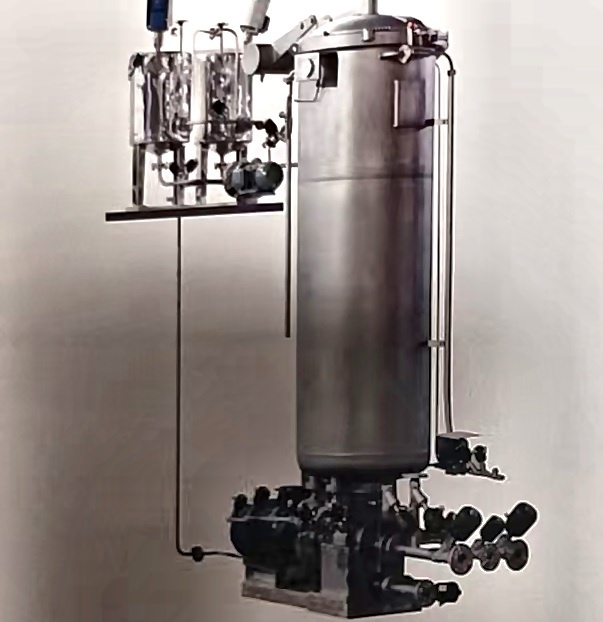

SS241H 系列 高温高压纱线染色机（新一代）SS241H Series HTHP Yarn Dyeing Machine (New Generation)

节能高新 · 专利低浴比主循环泵 · 浴比 1:2.8~1:3.5Energy-saving high-tech · patented low-liquor-ratio circulation pump · 1:2.8–1:3.5

• 浴比低至 1:2.8 - 1:3.5，专利设计的低浴比主循环泵保证均染。Liquor ratio as low as 1:2.8–1:3.5 with a patented low-liquor-ratio main circulation pump.
• 工艺水耗 ≤ 50 吨/吨棉纱，较传统机节省 65% 以上。Process water ≤ 50 t per ton of cotton yarn, over 65% less than traditional machines.
• 蒸汽耗 ≤ 3 吨/吨棉纱，较传统机节省 45% 以上。Steam ≤ 3 t per ton of cotton yarn, over 45% saving.
• 电耗低于 500 kWh/吨纱，较传统机节省 45% 以上。Electricity under 500 kWh per ton of yarn, over 45% saving.
• 产能提升 20% 以上；容布量范围 1 kg ~ 1956 kg（按纱包计）。Over 20% higher productivity; capacity range 1 kg to 1956 kg based on package.

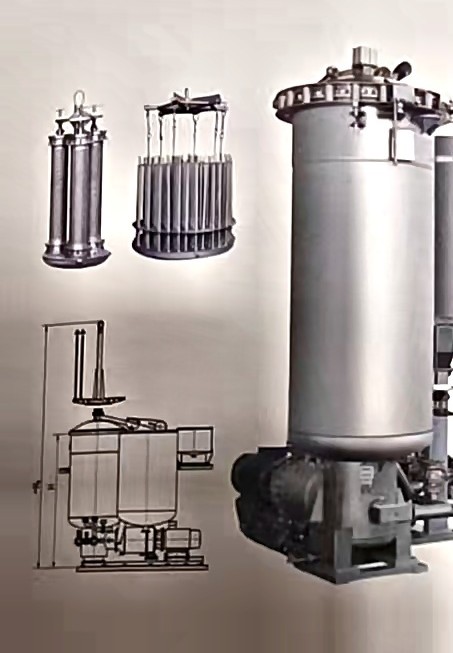

SS241C 系列 高温高压纱线染色机SS241C Series HTHP Yarn Dyeing Machine

循环染液流量控制 · 低浴比 1:6~1:7 · 变频主泵Controlled circulation flow · liquor ratio 1:6–1:7 · VFD main pump

• 循环染液流量控制：根据不同纱种和染色工艺要求，通过主泵变频调速系统节省能源并给予合理流量，实现同步染色控制最佳化。Circulation flow control: VFD main pump adjusts flow per yarn and process, saving energy and optimising synchronous dyeing.
• 结构紧凑：热交换器、对衡式离心水泵和 180° 平板换向一体化装置，管路布置紧凑，节省空间。Compact structure: heat exchanger, balanced centrifugal pump and 180° flat reversing device integrated, saving space.
• 低浴比设计 1:6~1:7，节省染料、助剂和能源，减少排污量。Low liquor ratio 1:6–1:7 saves dyes, auxiliaries and energy and reduces discharge.
• 液流换向时主泵不停顿，增加循环次数，提高上染率均匀性。The main pump keeps running during flow reversal, raising cycle count and dyeing evenness.
• 溢流式加料系统可进行动态化加料，有效控制加料速度和量。Overflow dosing system enables dynamic feeding with controlled speed and quantity.

标准结构：主缸及所有与染液接触部分均采用优质奥氏体不锈钢；高效不锈钢对衡式离心水泵配机械密封、变频电机驱动；垂直式缸体配平衡重锤开关缸盖、手动缸锁与电气安全联锁（SS241C-900 规格以上缸盖由气缸辅助重锤开关）；液流换向器及流向转换自动控制系统；新颖高效的管道外置式热交换器；溢流式加料、回液及化料颜料桶；主缸加压卸压系统；全自动比例式升温降温系统。Standard structure: main vat and all liquor-contact parts in quality austenitic stainless steel; high-efficiency balanced stainless centrifugal pump with mechanical seal driven by a VFD motor; vertical vat body with counter-weighted lid, manual vat lock and electrical safety interlock (air-cylinder aided lid from SS241C-900 up); compact flow reverser with automatic control; latest external-pipe heat exchanger; overflow dosing, return and dissolving tank; main vat pressurising and relief system; fully automatic proportional heating and cooling.

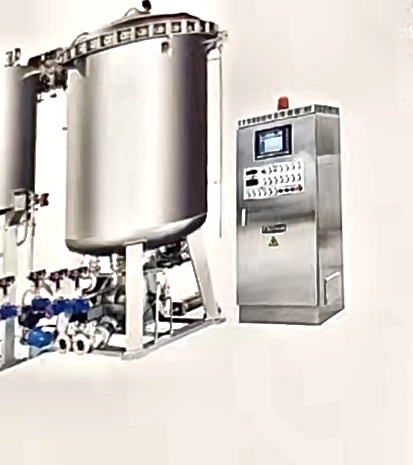

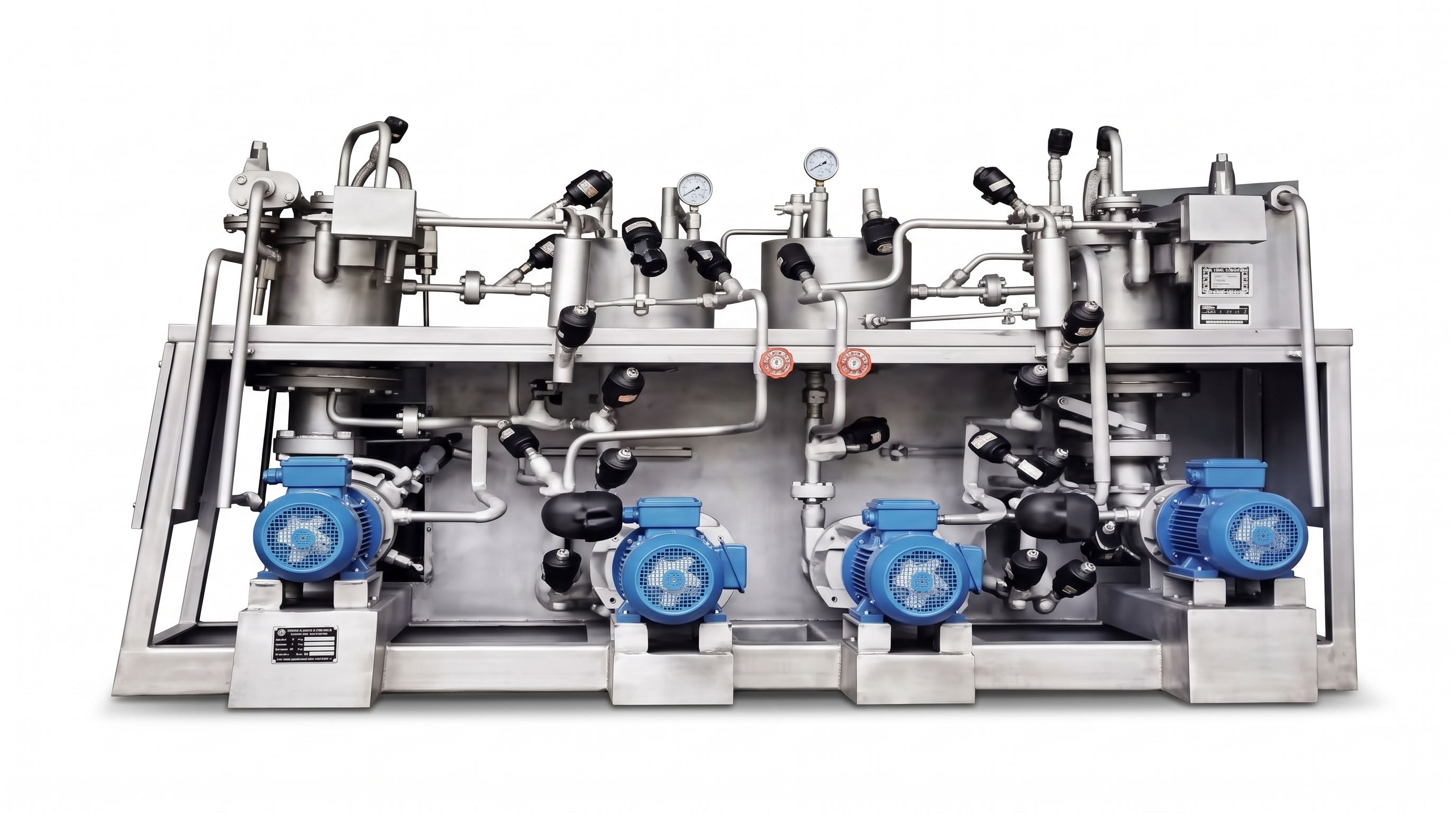

SS241B 系列 高温高压纱线染色机SS241B Series HTHP Yarn Dyeing Machine

吸上式 / 满缸式可选 · 标准纱筒 Φ165×165 mmSuction and fully filled types · standard package Φ165×165 mm

SS241B 系列提供吸上式（suction）与满缸式（fully filled）两种结构，订货时请注明机型与纱种数量。原厂样本另列「每杆筒子纱数量」与「起吊高度 H（2810~10285 mm）」两栏，其中载重栏与四行 132 杆规格型号在竖版翻拍样本上无法辨认，故未录入，具体数据请与公司确认。每杆筒子纱数量按 10~19 只配置，标准纱筒 Φ165×165 mm。The SS241B range is available in suction and fully filled types; please state the machine type and yarn quantity when ordering. The original catalogue also lists "packages per spindle" (10–19) and "lifting height H" (2810–10285 mm); the capacity column and four 132-spindle model codes could not be read on the portrait source photographs and are therefore omitted pending confirmation. Standard package Φ165×165 mm.

SGD 系列 常温成衣染色机SGD Series Atmospheric Garment Dyeing Machine

最高工作温度 98℃ · 载量 2.5~400 kgMax working temperature 98℃ · capacity 2.5–400 kg

适用于无缝内衣、针织毛衣、腈纶衫、尼龙袜、围巾、手套及混纺纱线等成衣染色。机身接触染液部分采用优质抗腐蚀不锈钢；桨叶无级调速移位装置使成衣在缸内均匀翻转；具备直接与间接烘干功能及直喷冷却功能；配专用水温检测器与水位显示器。Suitable for dyeing seamless underwear, knitted sweaters, acrylic shirts, nylon stocks, scarf, gloves and mixed yarn textiles. Liquor-contact parts are made of high-quality anti-corrosion stainless steel; the packing blade step-less shift device turns garments evenly; it has directing and indirect healing (drying) function plus direct spray cooling function. A specially designed water temperature detector and water level indicator are fitted as standard.

最高工作温度 98℃；升温速度约 5℃/分钟（以蒸汽压力 6 kg/cm² 计）；降温速度约 2℃/分钟（以冷却水压 3 kg/cm² 计）。原厂样本表格底部另有一行（功率 4 kW、外形 5100 × 2200 × 2200 mm）在翻拍页面下缘被裁切，型号与载量未录入。选配件：全自动或半自动 PC 控制系统、颜料桶加料泵、颜料桶全自动控制、加料系统。Max working temperature 98℃; heating about 5℃/min (steam pressure 6 kg/cm²); cooling about 2℃/min (cooling water 3 kg/cm²). The source table has one further row (4 kW, 5100 × 2200 × 2200 mm) cut off at the bottom edge of the photographed page, so its model and capacity are omitted. Options: fully or semi-automatic PC control, dosing pump for the paint barrel, automatic control of the paint barrel and dosing system.

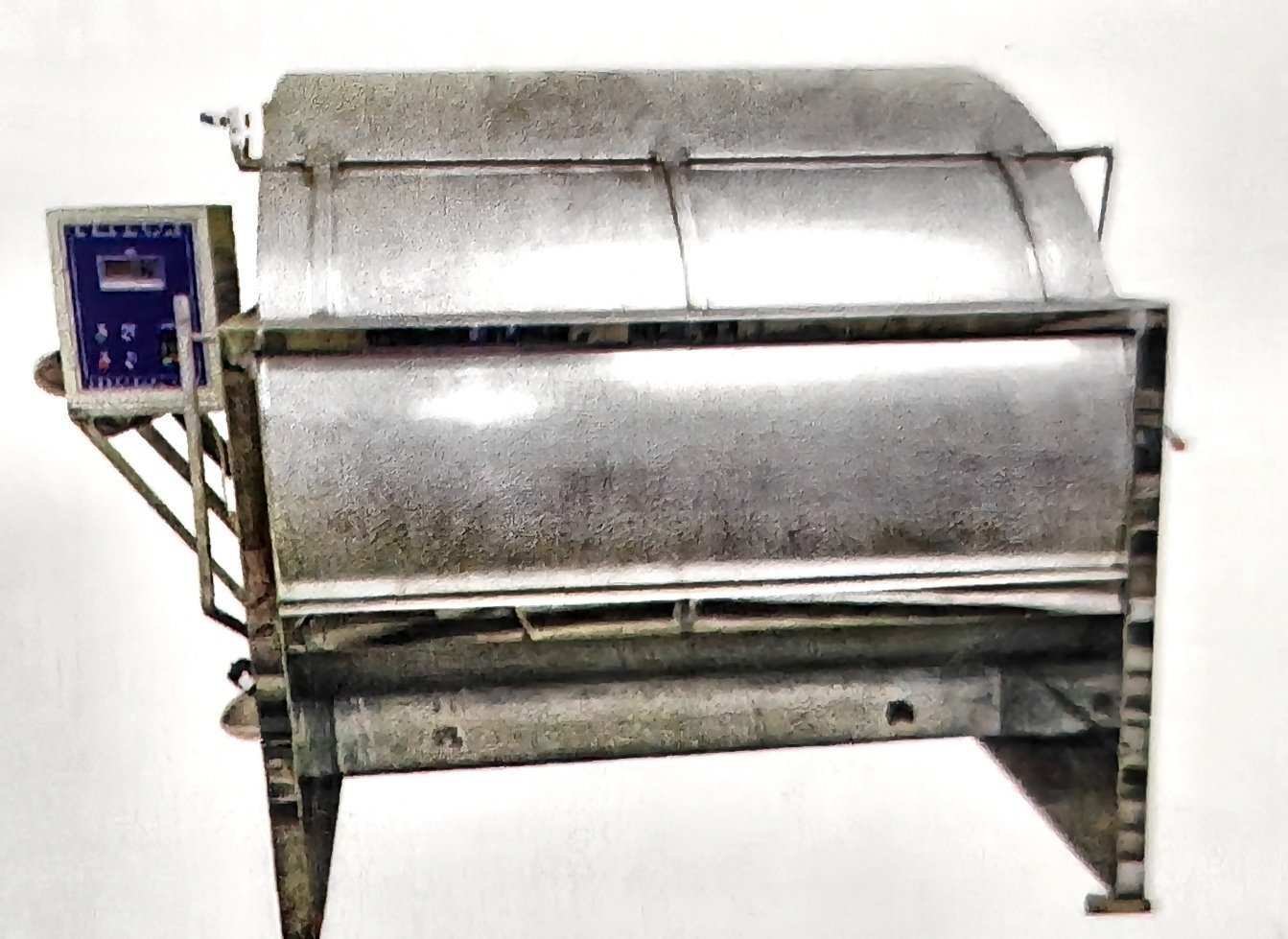

TCY 电脑控温成衣染色机TCY Computer-Controlled Temperature Garment Dyeing Machine

电脑控温 · 升温曲线预设 · 成衣染色与后处理Computer temperature control · preset heating curves · garment dyeing and finishing

TCY 电脑控温成衣染色机以工业电脑或 PLC 对染浴温度、时间与循环进行程序化控制，可存储多组成衣染色工艺曲线，换批生产只需调用配方。适用于棉、毛、化纤及其混纺成衣的染色、水洗与柔软后处理，也可用于袜子、围巾、手套等小件制品。The TCY garment dyeing machine uses an industrial PC or PLC to program bath temperature, time and circulation, and can store multiple garment dyeing process curves so that a recipe is simply recalled for each batch. Suitable for dyeing, washing and softening of cotton, wool, synthetic and blended garments, as well as small pieces such as socks, scarves and gloves.

SR1000-1200 卷染机SR1000-1200 Jig Dyeing Machine

大卷装平幅卷染 · 恒张力低张力运行 · 计长自动换向Large-roll open-width jig dyeing · constant low tension · automatic reversing with length count

该设备具备计长、计匹、方向变换、正反、停车、跳档等自动功能，运行更稳定、可靠、精确，是目前国内较理想的卷染机。SR1000-1200 可用于各种门幅的棉、尼龙、人造及合成纤维织物在分散、硫化、还原、直接、活性染料以及洗涤、漂白、去油和清洗等工艺中以恒定的速度和恒定的张力进行卷染。The equipment serves the automatic functions of travel count, count, direction change, reverse, stop and skip. It can operate more stably, reliably and accurately and is really an ideal jig dyeing machine presently in our country. The SR1000-1200 is suitable for various open-width silk, cotton, nylon, artificial and synthetic fabrics in the processes of dyeing with distributed, sulfur, vat, direct and reactive dyes, scouring, bleaching, de-oiling and cleaning at a constant rate and under a constant tension.

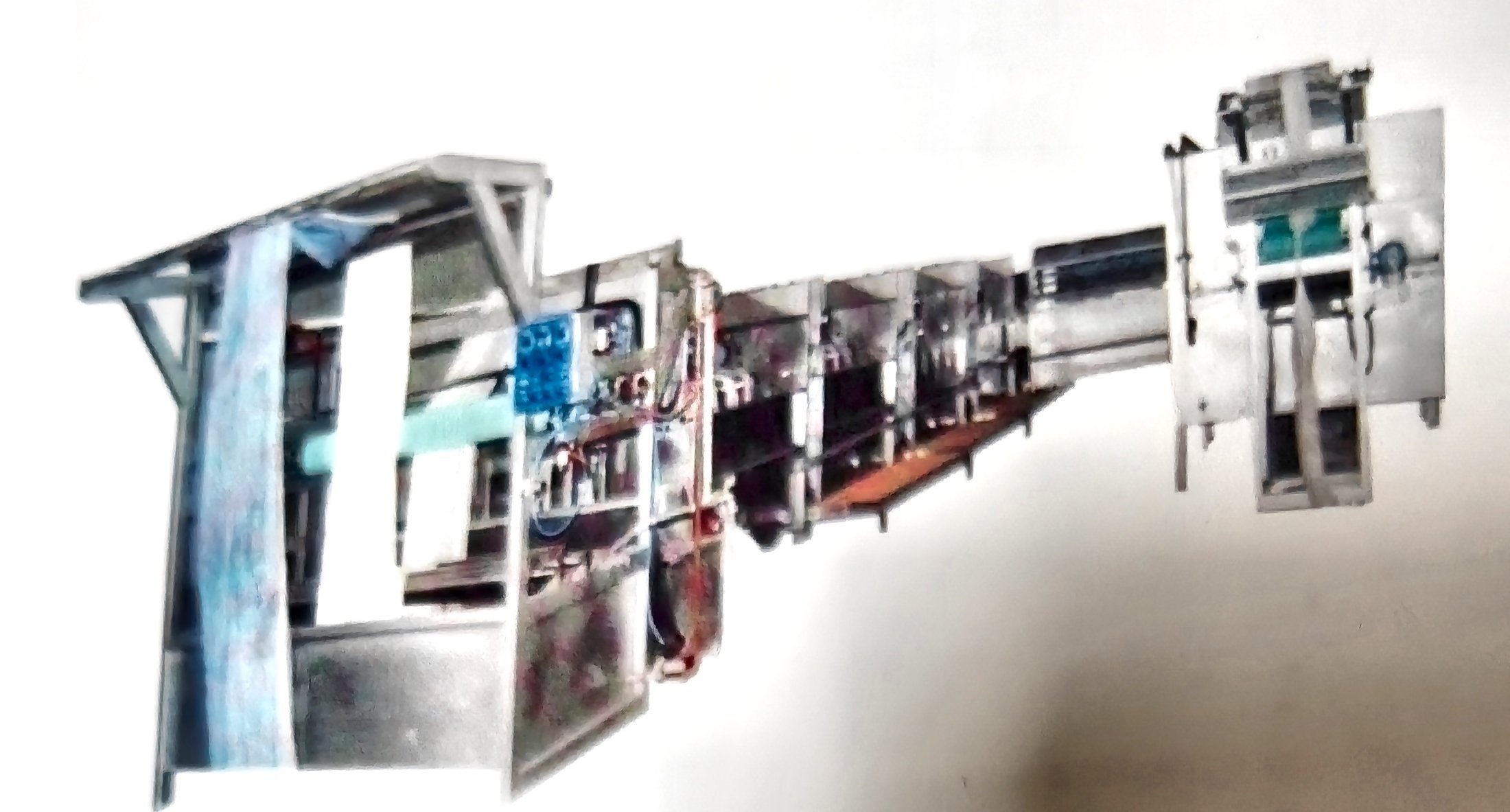

松式绳状连续水洗联合机Continuous Rope Washing Range

4-10 槽连续逆流洗涤 · 车速 10-80 m/min4–10 compartments continuous counterflow washing · speed 10–80 m/min

松式绳状连续水洗联合机用于绳状织物的连续化水洗，4~10 槽逆流洗涤结构使水与织物逆向流动，在保证洗涤效果的同时显著降低新鲜水耗。可与染色机、轧液机联线组成绳状染整连续生产线。The continuous rope washing range washes rope-form fabric continuously; the 4–10 compartment counterflow structure moves water against the fabric, cutting fresh water consumption substantially while maintaining washing performance. It can be linked with dyeing machines and pad driers to form a continuous rope dyeing and finishing line.

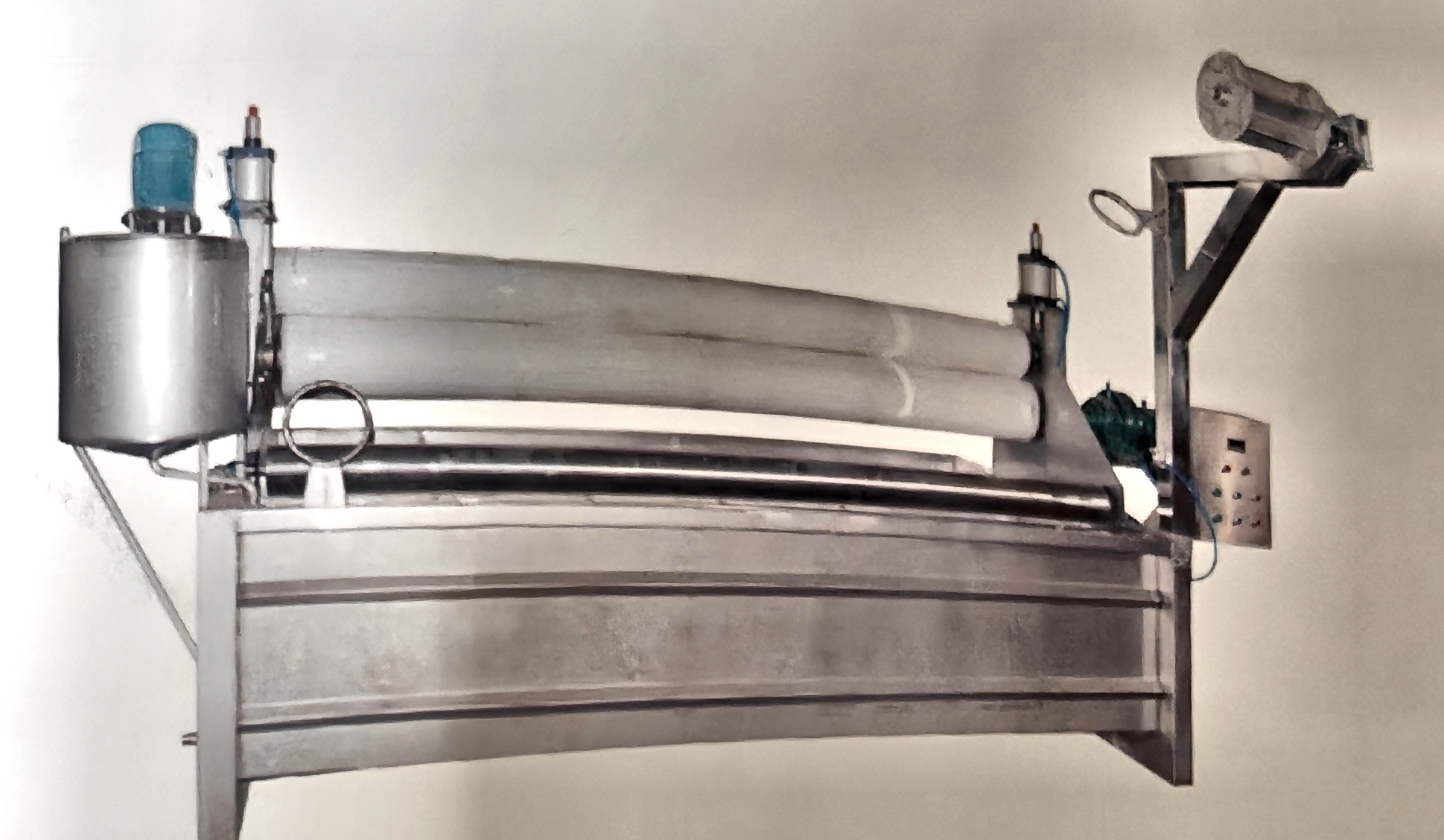

高精柔软轧液机Fabric Softening Winch

门幅 1800-3200 mm · 气动加压匀轧Width 1800–3200 mm · pneumatic uniform pressure padding

高精柔软轧液机用于织物的柔软与轧液处理，门幅覆盖 1800~3200 mm，气动加压系统使轧辊全线压力均匀，织物含液率一致，手感柔软滑爽。适用于棉、化纤及其混纺织物的柔软、上浆与轧水工序。The precision softening winch performs fabric softening and padding over a width range of 1800–3200 mm; the pneumatic pressure system gives uniform line pressure across the padder rolls, so liquor pick-up is consistent and the hand feel soft and smooth. Suitable for softening, sizing and hydro-extraction of cotton, synthetic and blended fabrics.

纱架与纱筒配件Yarn Carriers and Package Accessories

标准纱筒 Φ165×165 mm · 适应多规格纱杆Standard package Φ165×165 mm · for all spindle sizes

立信提供与各型纱线染色机配套的纱架、纱杆与纱筒，标准纱筒规格为 Φ165×165 mm，可调整每杆筒子纱数量以适配不同载重规格，也可按客户纱种定制纱筒孔径与结构。LIXIN supplies carriers, spindles and packages matched to every yarn dyeing machine. The standard package is Φ165×165 mm; the number of packages per spindle is adjustable to suit each capacity model, and package bore and structure can be customised for the customer's yarn type.

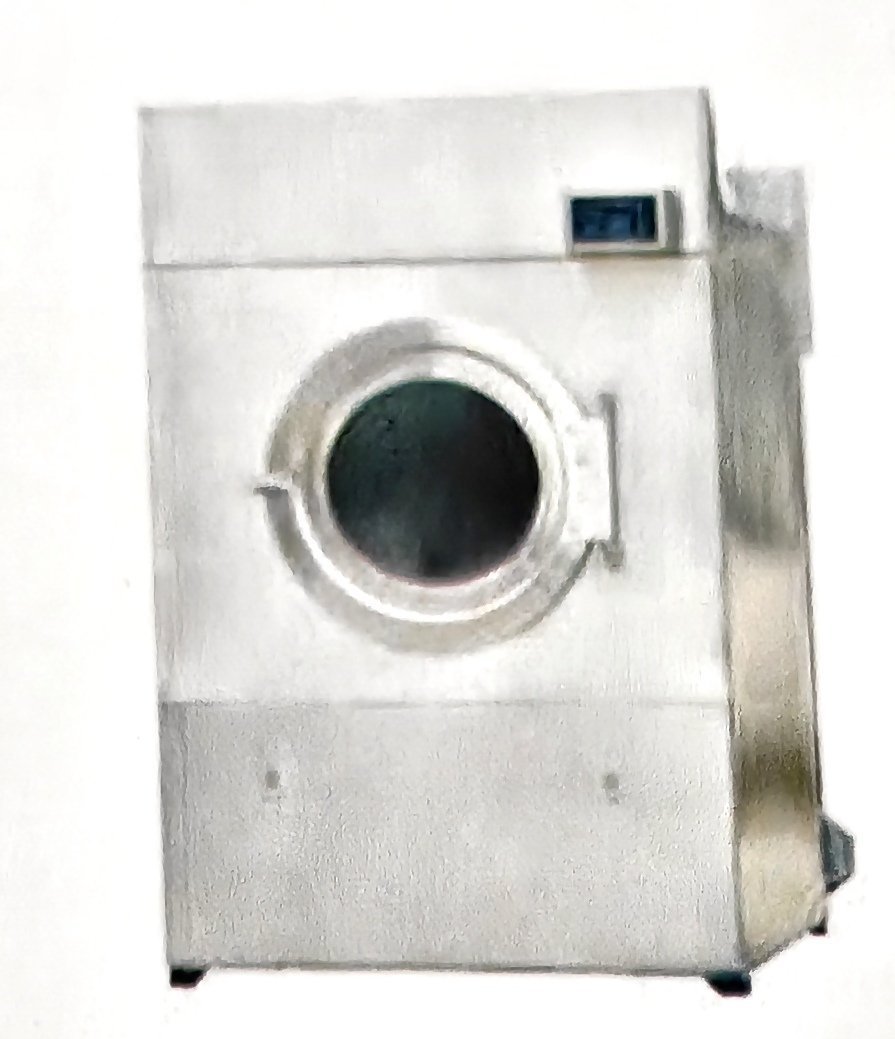

全钢工业烘干机All-Steel Industrial Dryer

高效节能箱体烘干 · 散纤维与绞纱烘干Energy-saving chamber drying · for loose fibre and hank yarn

全钢工业烘干机为高效节能箱体烘干设备，用于散纤维、绞纱及筒子纱染色后的烘干，热风循环系统保证烘燥均匀、无黄斑与色差，箱体全钢结构耐腐蚀、寿命长。The all-steel industrial dryer is an energy-saving chamber drying machine used after dyeing loose fibre, hank yarn and package yarn; the hot-air circulation system ensures even drying without yellowing or shade change, and the all-steel chamber is corrosion resistant and long lasting.

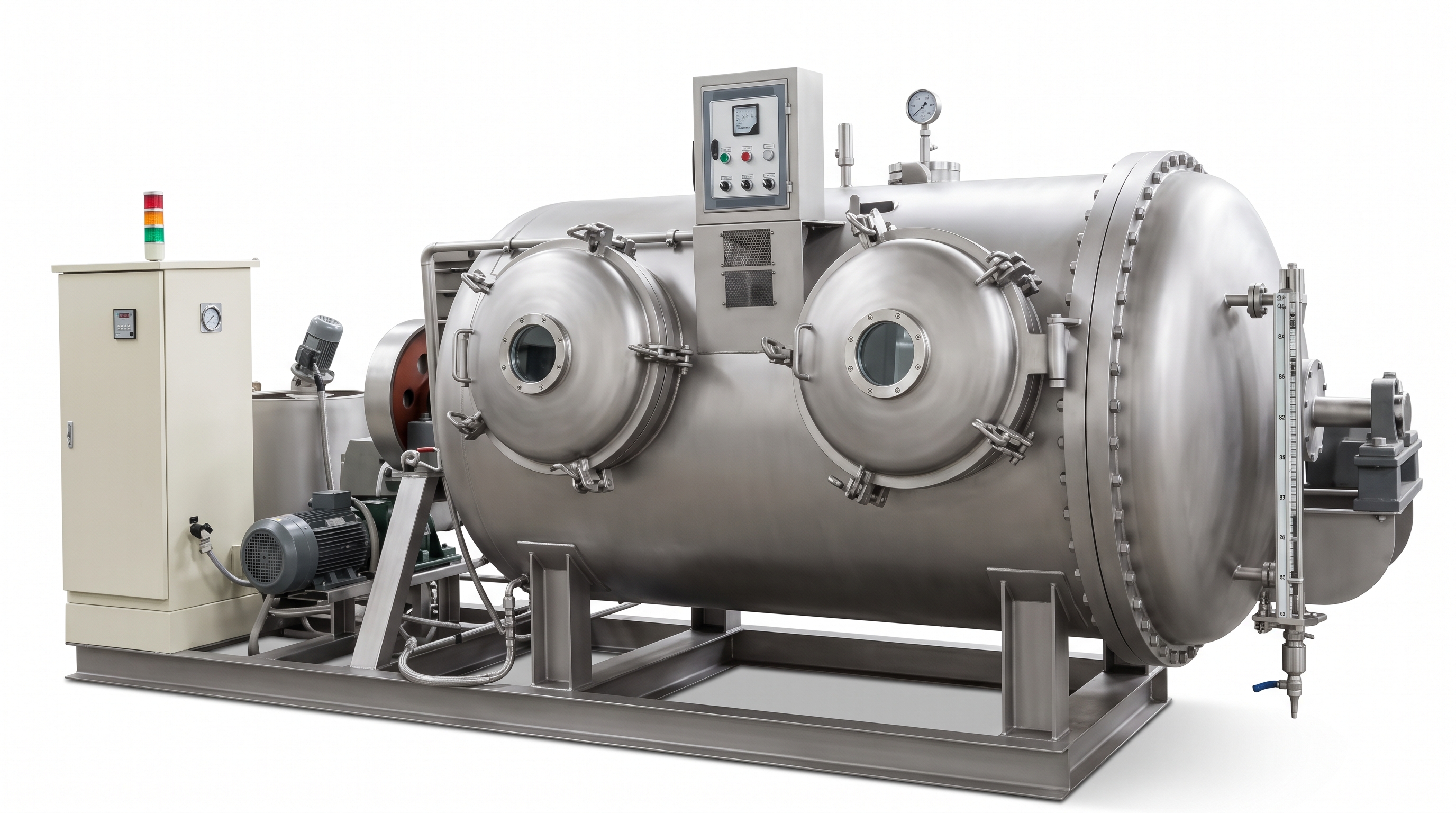

HCY 系列 高温高压定型 / 染色机HCY Series HTHP Setting / Dyeing Machine

松式定型与平幅浸染 · 高支高密与高弹织物Loose setting and open-width dip dyeing · high-count and high-elastic fabrics

HCY 系列适用于多种高支高密与高弹性织物的松式定型与平幅浸染，确保织物手感滑爽丰满，兼顾定形效果与染色均匀度。The HCY series is suitable for loose setting and open-width dip dyeing of a wide range of high-count, high-density and high-elastic fabrics, ensuring a smooth, full hand feel while combining setting performance with dyeing levelness.

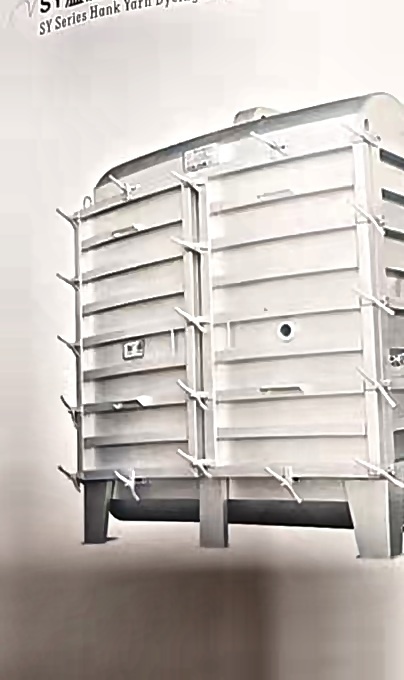

SY-4 型 常温喷射绞纱染色机SY-4 Atmospheric Jet Hank Dyeing Machine

常温喷射 · 绞纱染色与前处理Atmospheric jet · hank dyeing and pretreatment

SY-4 型为常温喷射绞纱染色机，采用喷射水流带动绞纱循环，适用于棉、毛及化纤绞纱的常温前处理与染色，结构紧凑、操作简便、维护量低。The SY-4 is an atmospheric jet hank dyeing machine in which a jet of water carries the hank yarn through the cycle; it is suitable for atmospheric pretreatment and dyeing of cotton, wool and synthetic hank yarn, with a compact structure, simple operation and low maintenance.
